  • H5249 STA-RITE S8M150 MODULAR MEDIA FILTER 450 SQ.FT.

H5249 STA-RITE S8M150 MODULAR MEDIA FILTER 450 SQ.FT.

SKU:
H5249
Weight:
147.00 LBS
Quantity:

Product Description

STA-RITE S8M150 MODULAR MEDIA FILTER 450 SQ.FT.

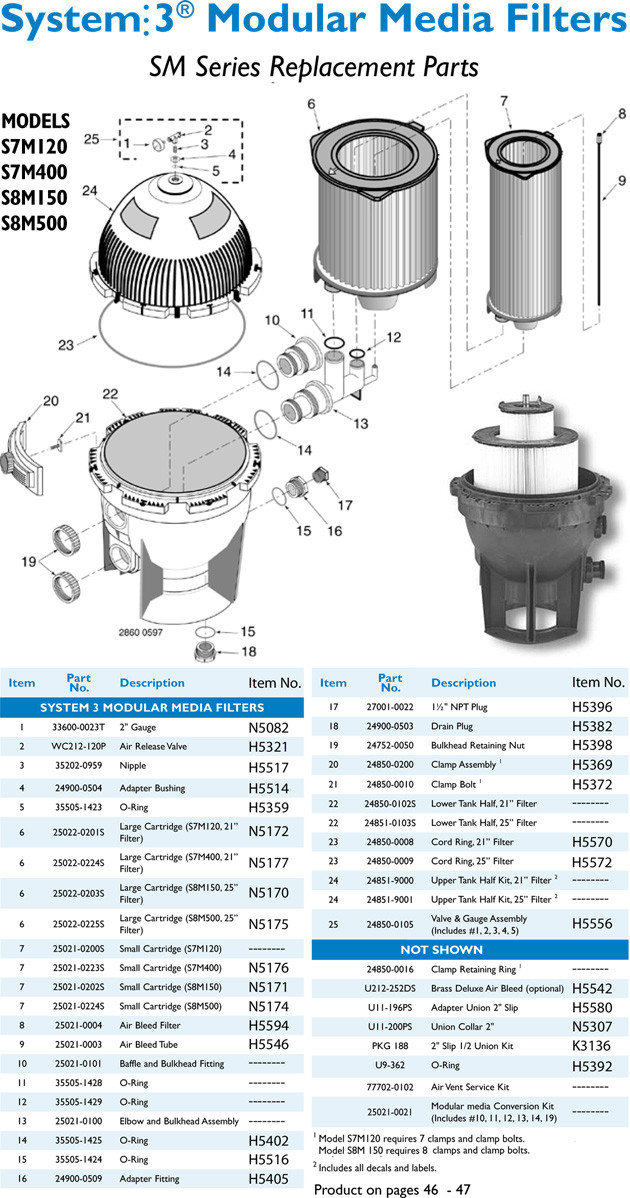

KeyPart NumberDescriptionItem Number
1 33600-0023T STA-RITE 33600-0023T PRESSURE GAUGE GAUGE N5082
2 WC8-72D SWIMQUIP #WC8-72D SCREEN FOR SAND FILTER H5330
3 WC212-120P SWIMQUIP #154689 AIR RELIEF RELEASE VALVE FOR FILTER H5321
4 35202-0959 Nipple N/A
5 24900-0504 STA-RITE #24900-0504 TANK ADPT BUSHING H5514
6 35505-1423 STA-RITE 35505-1423 O-RING FOR AIR RELEASE VALVE (SYSTEM 3) H5359
7a 25022-0201S STA-RITE 25022-0201S S7M120 CART. LARGE REPL. CARTRIDGE N5172
7b 250220203S STA-RITE 25022-0203S S8M150 CART. LARGE REPL. CARTRIDGE N5170
Ba 25021-0200S STA-RITE 25021-0200S S7M120 CART. SMALL REPL.CARTRIDGE N5173
8b 25021-0202S STA-RITE 25021-0202S S8M150 CART. SMALL REPL. CARTRIDGE N5171
9 25021-0004 STA-RITE #25021-0004 SYSTEM 3 AIR BLEED FILTER H5594
10 25021-0003 STA-RITE #25021-0003 SYSTEM 3 TUBE AIR BLEED TUBE H5546
11 25021-0101 Baffle and Bulkhead Fitting N/A
12 35505-1428 0-Ring N/A
13 35505-1429 0-Ring N/A
14 25021-0100 Elbow and Bulkhead Assembly N/A
15 35505-1425 STA-RITE #35505-1425 O-RING FOR PIPING ASSB - SYSTEM III H5402
16 35505-1424 STA-RITE #35505-1424 ADAPTER FTG O RG SUBST O-83 K3466/93 H5516
17 24900-0509 REPL.CARTRIDGE 5CH-502 50 SQFT. H5397
18 11201-0005B STA-RITE 27001-0022 1-1/2"NPT DRAIN PLUG W/O-RING H5396
19 24900-0503 STA-RITE 24900-0503 PLUG FOR SAND REMOVAL (SYSTEM 3 SAND) H5382
20 24752-0050 STA-RITE 24752-0050 BULKHEAD RETAINING NUT H5398
21a 24850-0200 STA-RITE 24850-0200 CLAMP ASSY FOR SYSTEM:3 SAND FILTER H5369
21b 24850-0010 STA RITE 24850-0010 CLAMP BOLT FOR SYSTEM 3 H5372
22a 24850-0102S Lower Tank Half (S7M120) N/A
22b 24851-0103S REPL.CARTRIDGE C-7401 20 SQ FT H5376
23a 24850-0008 STA-RITE 24850-0008, SYS.3 O-RING TANK O-RING S7M120,S7S50,S7D75 H5570
23b 24850-0009 STA-RITE 24850-0009, SYSTEM 3 TANK O-RING/S8M150,S8S70,SD110 H5572
24a 24851-9000 Upper Tank Half Kit (S7M120) N/A
24b 24851-9001 Upper Tank Half Kit (S8M150) N/A
25 24850-0105 STA-RITE 24850-0105 VALVE & GAUGE ASSY FOR SYS 3 D.E. FILT H5556
  24850-0006 Clamp Retaining Ring N/A
  U11-196P STA-RITE U11-196PS, SYSTEM 3 ADAPTER UNION 2" SLIP H5580
  U11-200P STA RITE U11-200P UNION COLLAR 2 2 N5307
  U9-362 STA-RITE U9-362 FILTER ELE. O-RING ASSY O-RING H5392
