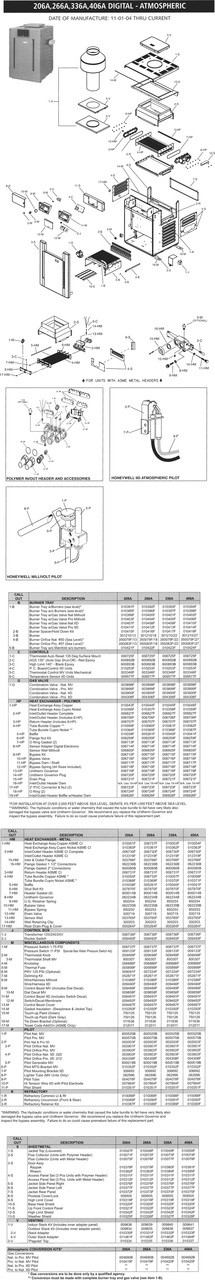

RAYPAK P-R406A-EN-C DIGITAL HEATER NATURAL GAS

Product Description

RAYPAK P-R406A-EN-C DIGITAL HEATER NATURAL GAS

Key	Part Number	Description	Item Number
1-B	005213F	J5218 RAYPAK 009490F WIRE HARNESS IID	J5218
1-B	005214F	Burner Tray w/ Burners (265)	N/A
1-B	005215F	Burner Tray w/ Burners (335)	N/A
1-B	005216F	Burner Tray w/ Burners (405)	N/A
	005217F	Burner Tray w/o Burners (185)	N/A
	005218F	Burner Tray w/o Burners (265)	N/A
	005219F	Burner Tray w/o Burners (335)	N/A
	005220F	Burner Tray w/o Burners (405)	N/A
2-B	005237F	Burner Spacer/ Hold Down Kit (185)	N/A
2-B	005238F	Burner Spacer/ Hold Down Kit (265)	N/A
2-B	005239F	Burner Spacer/ Hold Down Kit (335)	N/A
2-B	005240F	Burner Spacer/ Hold Down Kit (405)	N/A
3-B	301210	J1529 RAYPAK #301210 BURNER ONLY FOR 185 - 405	J1529
4-B	350080F	J1530 RAYPAK #350080 BURNER ORIFICE NATURAL #51 COLOR: BRASS	J1530
4-B	350083F	J1531 RAYPAK #350083 BURNER ORIFICE PROPANE FOR 153A HEATER	J1531
5-B	005265F	Burner Tray w/o Manifold or Burners (185)	N/A
5-B	005266F	Burner Tray w/o Manifold or Burners (265)	N/A
5-B	005267F	Burner Tray w/o Manifold or Burners (335)	N/A
5-B	005268F	J5248 RAYPAK 005268F BURNER TRAY ONLY RP2100 CAPRON 405	J5248
1-C	006725F	J5190 RAYPAK 006725F HI-LIMIT RESET 135 DEGREE SRFC MT RP2100 CAPR	J5190
4-C	006700F	P.C. Board Control IID	N/A
5-C	600827B	J1555 RAYPAK #600827B THERMOSTAT FOR MILLIVOLT - MECHANICAL	J1555
6-C	006701F	J5212 RAYPAK 006701F TEMP SENSOR DIGITAL HEATERS 1998-2003	J5212
1-G	003898F	J1538 RAYPAK #003898F NATURAL GAS VALVE 1/2" FOR ALL HEATERS	J1538
	003899F	J1539 RAYPAK #003899F GAS VALVE PROPANE 1/2" FOR ALL HEATERS	J1539
	003900F	J1569 RAYPAK #003900F GAS VALVE NATURAL IID	J1569
	004306F	J1570 RAYPAK #004306F GAS VALVE PROPANE IID	J1570
1-HP	006702F	J5250 RAYPAK 006702F HEAT EXCHANGER ASSY COMPLETE RP2100 CAPRON185	J5250
1-HP	006703F	Heat Exchanger Assembly, Complete (265)	N/A
1-HP	006704F	Heat Exchanger Assembly, Complete (335)	N/A
1-HP	006705F	J5256 RAYPAK 006705F HEAT EXCHANGER ASSY COMP. RP2100 CAPRON 405	J5256
2-HP	006706F	J5196 RAYPAK 006706F INLET/OUTLET HEADER CAPRON RP2100 GAS HEATR	J5196
3-HP	006707F	J5198 RAYPAK 006707F RETURN HEADER CAPRON RP2100 GAS HEATERS	J5198
4-HP	006708F	J5258 RAYPAK 006708F TUBE BUNDLE RP2100 CAPRON 185	J5258
4-HP	006709F	J5260 RAYPAK 006709F TUBE BUNDLE RP2100 CAPRON 265	J5260
4-HP	006710F	J5262 RAYPAK 006710F TUBE BUNDLE RP2100 CAPRON 335	J5262
4-HP	006711F	J5264 RAYPAK 006711F TUBE BUNDLE RP2100 CAPRON 405	J5264
5-HP	006712F	J5206 RAYPAK 006712F HEADER BOLT KIT RP2100 CAPRON GAS HEATERS	J5206
6-HP	006713F	J5202 RAYPAK 006713F HEADER GASKET O-RING 2, RP2100 CAPRON GAS HT	J5202
7-HP	006714F	J5216 RAYPAK 006714F SENSOR WELL (JACO FTTG) FOR RP2100 CAPRON	J5216
	006805F	J5192 RAYPAK 006805F SENSOR WELL FOR RP2100 CAPRON GAS HEATER	J5192
8-HP	006715F	J5266 RAYPAK 006715F BYPASS KIT RP2100 CAPRON 185-405	J5266
9-HP	006716F	J5268 RAYPAK 006716F BYPASS VALVE RP2100 CAPRON 185-405	J5268
10-HP	006717F	J5270 RAYPAK 006717F BYPASS DAM/ SHAFT RP2100 CAPRON 185-405	J5270
11-HP	006750F	Bypass Spring (185)	N/A
11-HP	006718F	J5274 RAYPAK #006718F BYPASS SPRING FOR 185-405	J5274
12-HP	006719F	J5194 RAYPAK 006719F UNITHERM GOVERN RP2100 CAPRON GAS HEATERS	J5194
13-HP	006720F	J5276 RAYPAK 006720F UNITHERM GOVERNOR PLUG RP2100 CAPRON 185-405	J5276
14-HP	006721F	J5200 RAYPAK 006721F DRAIN PLUG FRONT & REAR RP2100 CAPRON HTR	J5200
15-HP	006722F	J5278 RAYPAK 006722F INLET/OUTLET HEADER DAM RP2100 185-405	J5278
16-HP	006723F	J5280 RAYPAK 006723F 2" PVC CONN&NUT 2/SET-RP2100 CAPRON 185-405	J5280
17-HP	006724F	J5204 RAYPAK 006724F FLANGE O-RING KIT FOR RP2100 CAPRON HEATER	J5204
1-J	004817B	J1585 RAYPAK #004817B IGNITION NAT. CONTROL KIT (REPLACES 600857)	J1585
1-J	004818B	J1587 RAYPAK #004818B IGNITION CONTROL IID PROPANE	J1587
2-J	006736F	J5214 RAYPAK 006736F TRANSFORMER 120/240/24V FOR RP2100 CAPRON	J5214
3-J	650902	J1689 RAYPAK #006872F ROCKER SWITCH MV UNIT FOR RP2100 (650902)	J1689
1-M	006737F	J5188 RAYPAK 006737F PRESSURE SWITCH FOR RP2100 CAPRON GAS HEATER	J5188
3-M	800303	J1691 RAYPAK #009499F THERMOSTAT KNOB FOR RP2100 (REPL.800303)	J1691
4-M	305138	J1579 RAYPAK #006886F KNOB STOP KIT KIT	J1579
5-M	005899F	J1692 RAYPAK #005899F THERMAL FUSE FOR RP2100	J1692
8-M	005269F	J1693 RAYPAK #005269F WIRE HARNESS MILLIVOLT UNIT FOR RP2100	J1693
8-M	006738F	J5284 RAYPAK 006738F WIRE/HARNESS IID RP2100 185-405	J5284
9-M	005291F	J1696 RAYPAK 005291F CONTROL PANEL FOR MILLIVOLT UNITS	J1696
10-M	006739F	J5286 RAYPAK 006739F CONTROL PANEL IID W/SWITCH DECAL FOR RP2100	J5286
11-M	800307	J1698 RAYPAK #009499F THERMOSTAT SHAFT FOR MV HEATER	J1698
1-P	600525B	J1536 RAYPAK #600525B NATURAL PILOT BURNER ASSEMBLY	J1536
1-P	600575B	J1537 RAYPAK #600575B PILOT BURNER ASSY, PROPANE 155/405	J1537
3-P	002003F	J1590 RAYPAK #002003F PILOT BURNER KIT IID (NAT. OR LP)	J1590
3-P	002003F	J1590 RAYPAK #002003F PILOT BURNER KIT IID (NAT. OR LP)	J1590
5-P	003901F	J1628 RAYPAK 003901F PILOT ORIFICE NATURAL MV	J1628
5-P	003902F	J1571 RAYPAK #3902F PILOT ORIFICE PROPANE, MILLIVOLT UNIT	J1571
7-P	003903F	J1572 RAYPAK #003903F NATURAL PILOT ORIFICE IID	J1572
7-P	004308F	J1576 RAYPAK #004308F PILOT ORIFICE PROPANE IID	J1576
9-P	600019B	J1534 RAYPAK #600019B PILOT GENERATOR GENERATOR	J1534
12-P	004817B	J1585 RAYPAK #004817B IGNITION NAT. CONTROL KIT (REPLACES 600857)	J1585
12-P	004818B	J1587 RAYPAK #004818B IGNITION CONTROL IID PROPANE	J1587
13-P	306693	J1673 RAYPAK 306693 PILOT MOUNTING BRACKET MV	J1673
14-P	306692	J1595 RAYPAK 306692 PILOT BRACKET	J1595
15-P	062996	Lighter Tube (MV Only)	N/A
16-P	004078F	J1573 RAYPAK #004078F PILOT TUBE PILOT TUBE 34"-KIT	J1573
17-P	002654B	J1591 RAYPAK #002654B HI TENSION WIRE IID WIRE IID	J1591
18-P	307223	J5290 SHIELD DRIP GUARD SHIELD-DRIP GUARD	J5290
1-R	005282F	J1961 RAYPAK #005282F REFRACTORY TILE COMMON LEFT & RIGHT	J1961
2-R	005283F	Refractory Uncommon (Front & Rear)	N/A
2-R	005284F	Refractory Uncommon (Front & Rear)	N/A
2-R	005285F	J1964 RAYPAK #005285F REFRACTORY TILE FRONT & REAR (335)	J1964
2-R	005286F	J5292 RAYPAK 005286F REFRACTORY	J5292
3-R	005287F	J5294 RAYPAK 010089F REFRACTORY KIT 206	J5294
3-R	005288F	J5296 RAYPAK 010091F REFRACTORY KIT 336	J5296
3-R	005289F	Refractory Retainer Kit (335)	N/A
3-R	005290F	Refractory Retainer Kit (405)	N/A
1-S	005303F	Jacket Top (Louvered) (185)	N/A
1-S	005304F	Jacket Top (Louvered) (265)	N/A
1-S	005305F	Jacket Top (Louvered) (335)	N/A
1-S	005306F	Jacket Top (Louvered) (405)	N/A
2-S	006740F	Flue Collector (185)	N/A
2-S	006741F	Flue Collector (265)	N/A
2-S	006742F	Flue Collector (335)	N/A
2-S	006743F	Flue Collector (405)	N/A
3-S	005315F	Door Assembly (185)	N/A
3-S	005316F	Door Assembly (265)	N/A
3-S	005317F	Door Assembly (335)	N/A
3-S	005318F	Door Assembly (405)	N/A
4-S	006744F	J5318 RAYPAK 006744F SCREW & RETAINR RP2100 CAPRON 185-405	J5318
5-S	006745F	Access Panel Set (3 pieces)	N/A
6-S	005300F	Side Panel Right	N/A
7-S	005301F	Side Panel Left	N/A
8-S	005302F	Side Panel Cap	N/A
9-S	005278F	Rear Panel Kit (185)	N/A
9-S	005279F	Rear Panel Kit (265)	N/A
9-S	005280F	Rear Panel Kit (335)	N/A
9-S	005281F	Rear Panel Kit (405)	N/A
10-S	005182	Sub-Base for Combustible Flooring (185)	N/A
10-S	005183	Sub-Base for Combustible Flooring (265)	N/A
10-S	005184	Sub-Base for Combustible Flooring (335)	N/A
10-S	005185	J5342 RAYPAK 005185 SUB-BASE FOR COMBUSTIBLE FLOORING 405	J5342
11-S	005198	J1990 RAYPACK 005198 POOLSTAT COVER/LOCK THERMOSTAT LOCK BOXR185-R405-KIT	J1990
12-S	005294F	High Limit Cover	N/A
1-V	006696	J1441 RAYPAK #009838 INDOOR STACK TOP FOR R206/207 6"DIAMETER	J1441
1-V	006697	J1443 RAYPAK #009839 INDOOR STACK TOP FOR R266/267 7"DIAMETER	J1443
1-V	006698	J1445 RAYPAK #009840 INDOOR STACK TOP FOR R336/337 8"DIAMETER	J1445
1-V	006699	J1447 RAYPAK #009841 INDOOR STACK TOP FOR R406/407 9"DIAMETER	J1447
3-V	065310	J1978 RAYPAK #007990 STACKLESS TOP "PAGODA TOP" 185 HEATER	J1978
3-V	065312	"Pagoda" Top (265)	N/A
3-V	065336	"Pagoda" Top (335)	N/A
3-V	065311	"Pagoda" Top (405)	N/A
