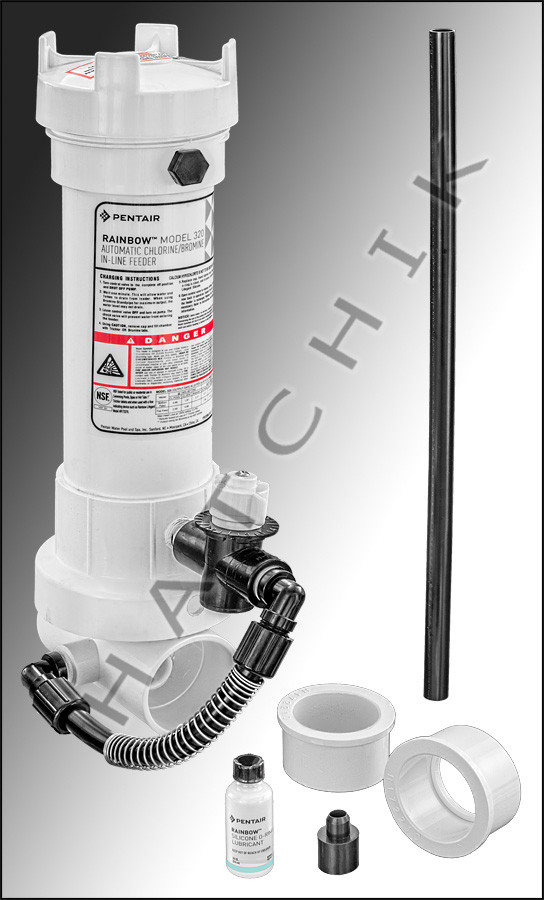

C1086 RAINBOW INLINE CHLORINATOR 320 CHLORINATORS

SKU:

C1086

Weight:

4.50 LBS

Quantity:

Product Description

RAINBOW INLINE CHLORINATOR 320 CHLORINATORS

Key	Part Number	Description	Item Number
1	R172052	RAINBOW R172052 CAP WRENCH	C1518
2	R172008W	RAINBOW #172008W 3" THREADED CAP, WHITE	H5067
3	172009	RAINBOW #172009 O-RING FOR CAP (CHLORINATOR OR FILTER)	H5064
4	R172321	Body Only (320)	N/A
5	R01052	Lock Screw	N/A
6	R172248	RAINBOW #172248 CHECK VALVE FOR CHLORINATOR	C1539
7	R172317	Diverter Tee 1-1 /2" x 2"	N/A
7	R172089	(Old Style) Bottom Tee Assy	N/A
8	R172256	RAINBOW #172256 NIPPLE RAINBOW #172256 NIPPLE	C1542
9	R172086	RAINBOW #172086 1/2 CHLORINE VALVE CONTROL VALVE	C1530
10	R172272	RAINBOW #172272 1/2" 90 NPT x TUBE TUBE 90 DEG ELL W/NUT	C1555
11	R172091	RAINBOW R172091 5/8" OD SHORT TUBE FEEDER TUBE	C1525
12	R172210	BUSHING REDUCER S X S 2" X 1-1/2" 2" X 1-1/2" #437-251	U3425
13	R172037	Spa Chamber	N/A
14	R172036	RAINBOW R172036 SILICONE LUBRICANT LUBRICANT SILICONE 3/4oz	C1514
15	172255	RAINBOW #172255 SCREEN FOR CHLOR CHLORINATOR	C1541
16	R172134	1/2" MPT PVC Plug	N/A
17	R172253	RAINBOW R172253 TOP FEED TUBE 5/8" X 18" TUBE (OPTIONAL TOP FEED)	C1540
18	R172319	RAINBOW #172319 FEEDER TANK RING BOTTOM O-RING (320/322 MODEL)	C1529
19	R172288	RAINBOW 172288 CHECK VALVE 1-1/2" / 2	C1517
20	R172048B	Standpipe Adapter	N/A
