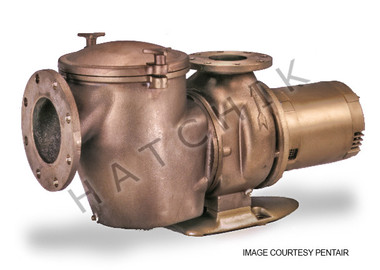

PUREX 5 HP/3PH COMMERCIAL PUMP CMK-50 #011652

Product Description

PUREX 5HP/3PH COMMERCIAL PUMP CMK-50 #011652

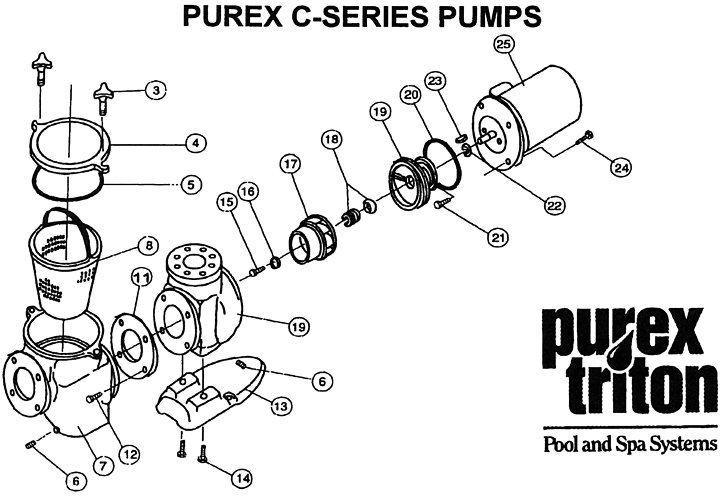

Key	Part Number	Description	Item Number
3	075280	K9453 PUREX #075280 HAND NUT ASSY FOR "C" & "L" PUMPS-OLD S13601	K9453
4	075275	K9369 PUREX #075275 BRASS COVER FOR CH/CM PUMPS-OLD# P07900	K9369
5	07-1433	K9307 PUREX 071433 GASKET C PMP GENERIC C" PUMP LID-OLD #P24150	K9307
6	071551	Drain Plug, 1/4" Brass (2 needed)	N/A
7	075271	Strainer Pot, Brass	N/A
8	072795	K9342 PUREX #072795 S.S.BASKET FOR C" PUMPS C-29 11"-OLD S01200	K9342
8	B-150	K7150 BASKET - #B-150 REPL PUREX "C" SERIES (COATED)	K7150
9	072159	Volute, Cast Iron	N/A
9	075273	Volute, Brass	N/A
11	070943	K9350 PUREX #070943 FLANGE GASKET FOR "C" SERIES PUMP OLD#P11050	K9350
12	071683	K9421 PENTAIR #071683 "C" SERIES CAP SCREW 3/4"-10X1-1/2(71683)	K9421
13	075287	K9382 PUREX #075287 BRASS FOOT FOR	K9382
14	071688	Screw, 5/8" - 11 x 1" Hex Head (2 needed)	N/A
15	071037	K9397 PUREX #071037 IMPELLER LOCK SCREW FOR "C" PUMP-OLD#P13550	K9397
16	071048	K9401 PUREX #071048 IMPELLER WASHER FOR CH/CM PUMPS -OLD #P19025	K9401
17	073828	K9465 PUREX 073828 IMPELLER 5 HP CH50 & CHK50 PUMPS	K9465
17	070228	K9473 PUREX #070228 IMPELLER 5HP CM50 & CMK50 PUMPS-OLD S17163	K9473
17	073829	K9470 PUREX #073829 IMPELLER 7-1/2HP 3 PHASE CHK75 PUMP-OLD S17157	K9470
17	070227	K9474 PUREX #070227 IMPELLER 7-1/2HP CMK75 3 PH PUMP-OLD# S17165	K9474
17	073830	K9471 PENTAIR #073830 IMPELLER 10HP 3 PH CHK100	K9471
17	070226	K9475 PUREX #070226 IMPELLER 10HP 3 PH CMK100 PUMP-OLD# S17167	K9475
17	073831	K9466 PUREX #073831 IMPELLER 15 HP 3 PHASE CHK 150-OLD# S17149	K9466
17	070225	K9499 PUREX #070225 IMPELLER 15 HP FOR CMK150 PUMP-OLD# S17315	K9499
17	07-3832	Impeller, 20 HP (CHK-200) High Head, Three Phase	N/A
18	071725	K6036 PUMP SEAL - #360 BUNA/CARBON PUREX/PENTAIR C SERIES PUMP	K6036
19	070906	K9380 PUREX #070906 BRONZE SEAL FLANGE FOR C PUMPS-OLD#P09800	K9380
20	07-1423	K9406 PUREX #071423 O-RING SEAL FLANGE FOR C PUMP-OLD #P24050	K9406
21	071681	K9419 PENTAIR #071681 HEX HEAD SCREW 3/8"-16 X 3/4	K9419
22	072185	K9447 PUREX #072185 WATER SLINGER FOR CH/CM PUMP-OLD #P35100	K9447
23	071046	K9400 PUREX #071046 IMPELLER KEY 3/16" CH/CM PUMPS OLD #P16550	K9400
24	071687	K9448 PUREX #071687 SCREW 1/2"-13 X 1-1/4" HEX HEAD	K9448
25	07-1366	K9454 PUREX 71366S 5HP/1PH 230V MOTOR C" SERIES MOTOR	K9454
25	07-1364	K9455 PUREX 71364S 5HP/3PH 220/440V C" SERIES MOTOR	K9455
25	07-1365	K9456 PUREX 71365S /R232 7-1/2 HP 3 PH 220/440V "C" SERIES MOTOR	K9456
25	071363	K9457 PUREX 71363S 10HP/3PH 220/440V C" SERIES MOTOR	K9457
25	071361S	K9458 PUREX 71361 15HP/3PH 220/440V C" SERIES MOTOR	K9458
25	07-1362	K9459 PUREX 71362S 20HP/3PH 220/440V C" SERIES MOTOR	K9459
	070395	Bearing #306	N/A
