PENTAIR INTELLIFLO 3 VSF THP 3.0 W/ IO BOARD WEF 7.1 208-230V 12.4-11.2 AMP

Product Description

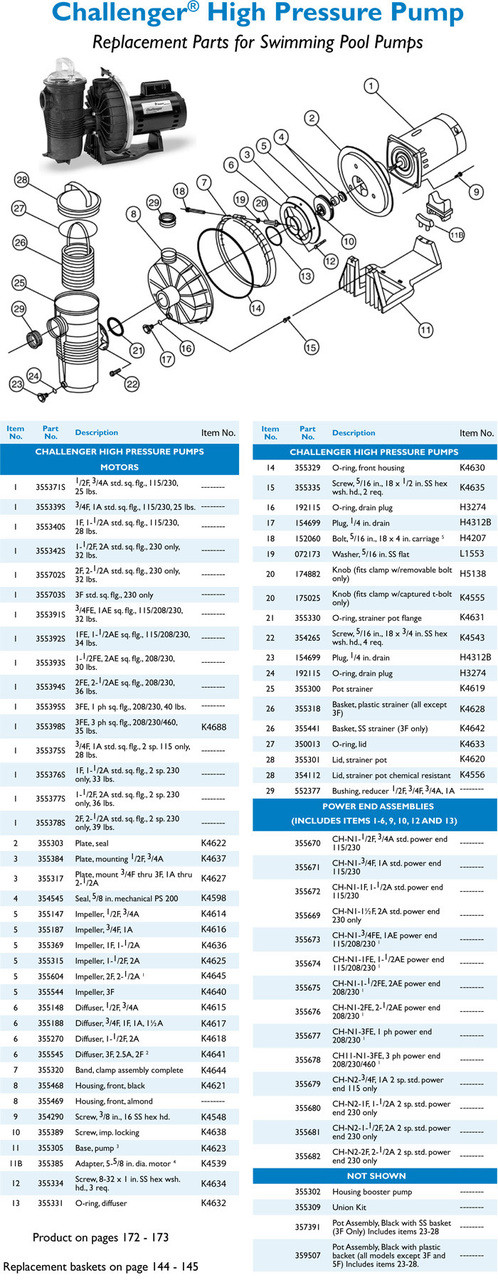

PENTAIR CHALLENGER PMP 2 HP 3PH FULL RATE #345288 208/230/460V

Key	Part Number	Description	Item Number
1		Motor, Square Flange	N/A
1	355705	K4689 PAC FAB 353319S MOTOR - SQ FL 5 HP 1 PH FOR CHALLENGER PUMP	K4689
1	355704	K4687 PAC FAB #35-5704S MOTOR - SQ FL 5 HP 3 PHASE FOR CHALLENGER	K4687
2	35-5303	K4622 PAC FAB #355004 SEAL PLATE FOR CHALLENGER	K4622
2	35-5497	K4685 PAC FAB #355004 SEAL PLATE FOR 5 HP CHALLENGER	K4685
3	355028	K4558 PAC FAB #355028 MOUNTING PLATE FOR 1/2 HP & 3/4 HP FULL RATE	K4558
3	355078	K4559 PAC FAB #355078 MOUNTING PLATE 1 HP & 1-1/2 HP FULL RATE	K4559
3	355095	K4560 PAC FAB #355095 MOUNTING PLATE 2 HP FULL RATE CHALLENGER	K4560
3	355495	K4686 PAC FAB #355495 MOUNTING PLATE FOR 5 HP CHALLENGER	K4686
4	354545	K6030 PUMP SEAL - #200 BUNA/CARBON REPL FOR: AQUA FLO: #92500150	K6030
5	355043	K4650 PAC FAB #355043 IMPELLER 3/4HP 3/4 HP MED HEAD HI-FLO	K4650
5	355067	K4651 PAC FAB #355067 IMPELLER 1HP 1 HP MED HEAD HI-FLO	K4651
5	355074	K4652 PAC FAB #355074 IMPELLER 1.5HP 1-1/2 HP MED HEAD HI-FLO	K4652
5	355086	K4653 PAC FAB #355086 IMPELLER 2HP 2 HP MED HEAD HI-FLO	K4653
5	355093	K4561 PAC FAB #355093 IMPELLER 2 HP FULL RATE CHALLENGER	K4561
5	355068	K4683 PAC FAB #355068 IMPELLER FOR CHALLENGER 5 HP / 60 HZ	K4683
6	355029	K4654 PAC FAB #355029 DIFFUSER 3/4-1 HP MED HEAD HI FLO	K4654
6	355077	K4655 PAC FAB #355077 DIFFUSER 1-1/2 TO 2 HP, MED HEAD HI FLO	K4655
6	355094	K4562 PAC FAB #355094 DIFFUSER 2 HP FULL RATE CHALLENGER	K4562
6	355069	K4684 PAC FAB #355069 DIFFUSER FOR CHALLENGER 5 HP / 60 HZ	K4684
7	355320	K4644 PAC FAB #355320 BAND ASSEMBLY COMPLETE	K4644
8	35-5302	K4621 PAC-FAB #355468 FRONT HOUSING FOR CHALLENGER	K4621
9	35-4290	K4548 PAC FAB #354290 CAP SCREW 3/8-16 X 1" SS FOR HYDROPUMP	K4548
10	355389	K4638 PAC FAB #355389 SCREW, IMPELLER LOCKING-CHALLENGER	K4638
11	355305	K4623 PAC FAB #355305 PUMP BASE	K4623
11A	355492	K4553 PAC FAB #354290 HEX HEAD SCREW	K4553
11B	355385	K4539 PENTAIR 355385 ADAPTOR FOR MOTOR OLD STYLE-5-5/8" DIAMETER MOTOR	K4539
12	355334	K4634 PAC FAB #355334 SCREW FOR CHALLENGER 8-32X1" SS HEX HEAD	K4634
13	355030	K4545 PAC FAB #355030 O-RING FOR DIFFUSER DIFFUSER	K4545
14	35-5329	K4630 PAC FAB #355329 O-RING FRONT HOUSING -CHALLENGER	K4630
15	355335	K4635 PAC FAB #355335 S.S. HEX HEAD SCREW 5/16"-18 X 1/2	K4635
16	192115	H3274 PAC FAB #192115 O-RING FOR DRAIN PLUG ON CHALLENGER PUMP	H3274
17	154699	H4312 PAC FAB #15-4699 PLUG 1/4" WITH O-RING (AFTER 1983)	H4312
18	152060	H4207 PAC-FAB #152060 CARRIAGE BOLT 5/16"-18X4	H4207
19	63-9822	L1553 PAC FAB #072173 WASHER 5/16" S.S. FLAT	L1553
20	174882	H5138 PAC-FAB #174882 CLAMP KNOB	H5138
20	175025	K4555 PAC-FAB #175025 KNOB FOR CLAMP WITH CAPTURED T-BOLT ONLY	K4555
21	355330	K4631 PAC FAB #355330 O-RING FOR CHALLENGER STRAINER & TA-100D	K4631
22	354265	K4543 PAC FAB #354265 CAP SCREW WASHER HEAD	K4543
23	154699	H4312 PAC FAB #15-4699 PLUG 1/4" WITH O-RING (AFTER 1983)	H4312
24	192115	H3274 PAC FAB #192115 O-RING FOR DRAIN PLUG ON CHALLENGER PUMP	H3274
25	355300	K4619 PAC FAB #355300 STRAINER POT FOR CHALLENGER	K4619
25	355900	K4682 PAC FAB #355900 STRAINER POT 08/27/2014 @ 02:23:27 PM	K4682
26	355318	K4628 PAC FAB #355318 BASKET CHALLENGER PLASTIC STRAINER BASKET	K4628
26	355901	K4681 PAC FAB #355901 S/S BASKET 5HP S.S. BASKET FOR 5HP CHALLENGER	K4681
27	35-0013	K4633 PAC FAB #350013 LID O-RING FOR CHALLENGER (SAME AS K9422)	K4633
27	15-2509	H4291 PAC FAB #152509 SQUARE RING 8-1/2 8-1/2	H4291
28	355301	K4620 PAC FAB #355301 LID-STRAINER POT FOR CHALLENGER	K4620
28	354112	K4556 PAC FAB 354112 BQ LID FOR STRAINER POT	K4556
28	355902	K4680 PAC FAB #355902 PUMP LID FOR 5 HP LID FOR 5 HP CHALLENGER	K4680
31	154527	H4337 PAC FAB #154527 WRENCH - 8 1/2" CLOSURE	H4337
	GOKIT5	K6021 ALADDIN GO-KIT5 PAC-FAB CHALLENGER CHALLENGER	K6021
