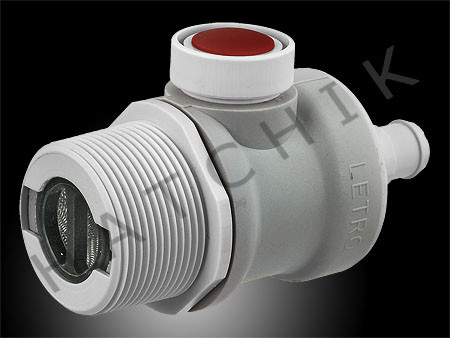

LETRO EW22 WALL FITTING COMPLETE (NEW STYLE)

Product Description

LETRO EW22 WALL FITTING COMPLETE (NEW STYLE)

Key	Part Number	Description	Item Number
	LX2000G	E4195 LETRO LEGEND II COMPLETE GREY COLOR: GRAY	E4195
	LX209	Legend Hose Box	N/A
1	LXU5	Top Cover (white, gray, burgundy, black)	N/A
2	LXU145N	Main Frame	N/A
3	LXU10N	Bottom Cover w/ Bracket	N/A
4	LXU6	Feed Mast w/O-Ring & Swivel	N/A
5	LXC86	Turbine Drive Shaft - Assd	N/A
6	LXC83	Turbine Spacer	N/A
7	LXC80	Turbine Bearing(2 needed)	N/A
8	LXA40	Turbine Shaft Shield	N/A
9	LXC110	Turbine Cover w/ Elbow	N/A
10A	LXC120	Hose for LXC110- 9" long	N/A
10B	LL120	Turbine Cover Hose 7"	N/A
11	LXC121	Venturi Jet - Hose	N/A
12	LXB5	Sweep Hose - Complete	N/A
13	LXB10	Wear Ring, 5 pack (9 needed)	N/A
14	LXB25	Sweep Hose Jet w/ Collar	N/A
15	LXB20	Adjustment Screw for Sweep Hose, 2 pack	N/A
17	LXA20	Ballast Float	N/A
18	LXH07	Hose Sleeve, 4 pack (17 needed)	N/A
19	LXU15	Coarse Mesh Bag	N/A
20	LXU16	Fine Mesh Bag	N/A
21	LXU9	Debris Valve	N/A
22	LXU7	O-Ring for Feed Mast	N/A
	LXC131	Thrust Jet Repair Kit (See 23, 24, 25)	N/A
23	LXC140	O-Ring for Thrust Jet (2 needed)	N/A
24	LXC130	Thrust Jet (2 needed)	N/A
25	LXC135	Thrust Jet Plate(2 needed)	N/A
26	LXC115	Elbow for Feed Mast / Turbine Cover (2 needed)	N/A
27	LXC65	Axle - Large (Rear)(4 needed)	N/A
28	LXC70	Axle Plate, 2 pack (4 needed)	N/A
34	LXC45	Lock Washer for LXC70, 5 pack (8 needed)	N/A
36	LXC6	Wheel - Large(4 needed)	N/A
37	LXC60	Ball Bearing, 2 pack (8 needed)	N/A
39	LXC55	Wheel Screw, 5 pack (4 needed)	N/A
40	LXC1	Tire for Legend II (4 needed)	N/A
	LXC10BK	Tire for Large Wheel	N/A
41	LXC125	Hose Clamp, 2 pack (7 needed)	N/A
42,49	LXC40	Screw for Bottom Cover, Turbine, Bearings, Thrust Jet Plate, 10 pack (10 needed)	N/A
47	LXU80	Hex Screw Cover to Frame, 2 pack(2 needed)	N/A
53	LXC64	Wheel Washer, 5 pack (4 needed)	N/A
54	LXB2	Weight - Sweep Hose	N/A
57	LXA30	Screw for 8 & 9, 5 pack (5 needed)	N/A
60	LXU76	Bolt for Axles, 2 pack (8 needed)	N/A
62	LXU147	Snap Fit Vac Tube Post, 2 pack	N/A
	LXU77	Bolt for LXU6 Feed Mast, Vac Tube	N/A
	LXU78	Nut for Feed Mast, Vac Tube	N/A
63	LXU79	Nut & Bolt - Feed Mast to Vac Tube	N/A
64	LXU8	Venturi Jet, 2 pack (2 needed)	N/A
H2	LX10	E4LX10 LETRO LX10 BACK UP VALVE FOR W/OUT BEARING (GRAY)	E4LX10
	LX11	Housing Body - B/U Valve	N/A
	LX12	E4LX12 LETRO E12 HOUSING TOP COVER B/U VALVE (OLD #LL12/LX12/L12)	E4LX12
	LX13	E4LX13 LETRO E13 O-RING FOR HOUSING BODY (OLD#LL13/LX13/L13)	E4LX13
	LX14	E4LX14 LETRO EG15 GEAR ASSY B/U VALVE	E4LX14
	LX15	Screw for Housing Body, 6 pack	N/A
	LX16	Gear Assy. - B/U Valve	N/A
H3	LXD10	E4LXD10 LETRO LXD10 FLOAT FOR LEGEND II FEED LINE 7 NEEDED	E4LXD10
H4	LX18	E4LX18 LETRO LX18 2' HOSE 1st SECTION FOR LEGEND II	E4LX18
H5	LX17	E4LX17 LETRO LX17 HOSE 6' 4 NEEDED FOR LEGEND II	E4LX17
H6	LX20	Hose Mender w/ O-Ring #0252, 2 pk (12 needed)	N/A
	LX21	O-Ring #0252 for Wall Fitting & Hose Mender	N/A
H7	LX19	E4LX19 LETRO LX19 SWIVEL - COMPLETE FOR LEGEND II 4 NEEDED	E4LX19
H8	LXW22	E4LXW22 LETRO LXW22 WALL FITTING COMPLETE FOR LEGEND II	E4LXW22
	LX23	E4LX23 LETRO #E23 WALL FITTING QUICK DISCNCT ADAPT. (OLD #LX23)	E4LX23
	LX24	Screen for Wall Fitting	N/A
	LX25	Pressure Relief Valve for Wall Fitting	N/A
H9	LX26	Pressure Tester	N/A
	LXU13	Step Adapter	N/A
