LAARS HI-E2 HEATER - PROPANE EHE350-PC ASME

Product Description

LAARS HI-E2 HEATER - PROPANE EHE350-PC ASME

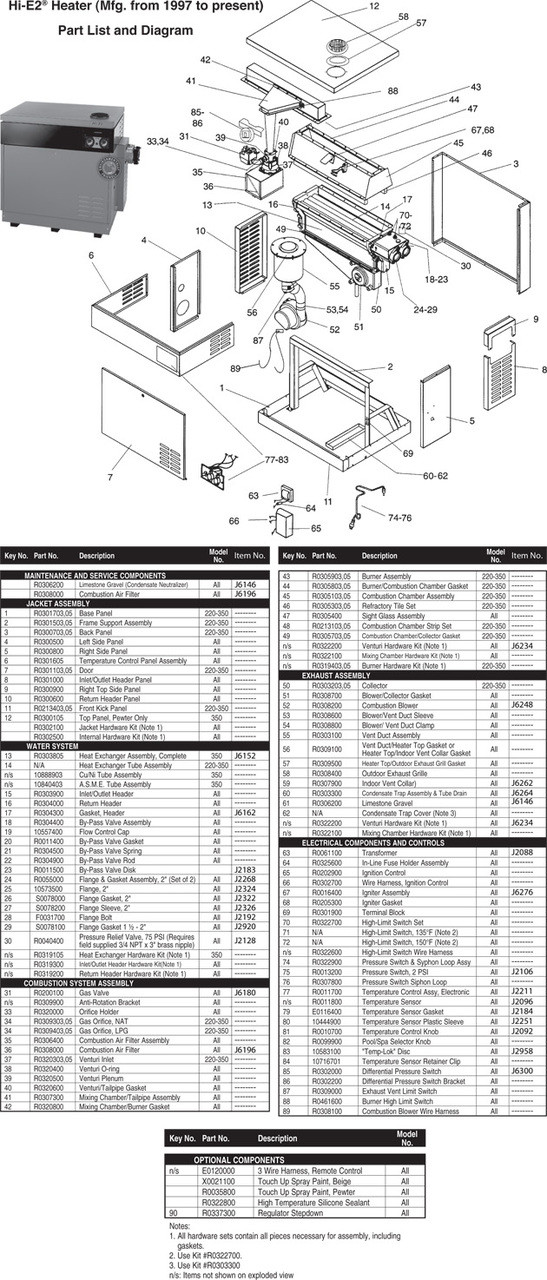

Key	Part Number	Description	Item Number
	R0308000	Combustion Air Filter	N/A
13	R0303803	Heat Exchanger Assembly, Complete (220)	N/A
13	R0303805	LAARS R0303805 HEAT EXCHANGER ASSY COMP. FOR 350 HI-E2 HEATR	J6152
14	R0304103	Heat Exchanger Tube Assembly (220)	N/A
14	R0304105	Heat Exchanger Tube Assembly (350)	N/A
15	R0303900	Inlet / Outlet Header	N/A
16	R0304000	Return Header	N/A
17	R0304300	LAARS R0304300 GASKET, HEADER FOR HI-E2 GAS HEATERS	J6162
18	R0304400	By-Pass Valve Assembly	N/A
19	10557400	Flow Control Cap	N/A
20	R0011400	LAARS R0011400 FLOW CONTROL GASKET GASKET (S-746)	J2247
21	R0304500	By-Pass Valve Spring	N/A
22	R0304900	By-Pass Valve Rod	N/A
23	R0011500	LAARS R0011500 BY PASS VALVE DISC FOR 1-1/2	J2183
24	R0055000	LAARS R0055000 2" FLANGE KIT COMPLETE SET OF 2	J2268
25	10573500+	LAARS 10573500 2" FRONT HEADER FLANGE	J2324
26	S0078000	LAARS S0078000 2" FLNG GSKT GENERI GASKET, GENERIC	J2322
27	S0078200+	LAARS S0078200 2" SLEEVE FOR FLANGE FLANGE	J2326
28	F0031700	LAARS F0031700 FLANGE BOLT	J2192
29	S0078100+	LAARS S0078100 GASKET, ADAPTOR 2" X 1-1/2" (EACH)	J2920
30	R0040400	LAARS R0040400 PRESSURE RELIEF VALVE 3/4" 75 PSI (J6540)	J2128
	R0319103	Heat Exchanger Hardware Kit (220)	N/A
	R0319105	Heat Exchanger Hardware Kit (350)	N/A
	R0319300	Inlet / Outlet Header Hardware Kit	N/A
	R0319200	Return Header Hardware Kit	N/A
31	R0200100	LAARS R0200100 GAS VALVE FOR HI-E2 GAS HEATERS	J6180
32	R0309900	Anti-Rotation Bracket (Not Shown)	N/A
33	R0320000	Orifice Holder	N/A
34	R0309303	Gas Orifice, NAT (220)	N/A
34	R0309305	Gas Orifice, NAT (350)	N/A
34	R0309403	Gas Orifice, LPG (220)	N/A
34	R0309405	Gas Orifice, LPG (350)	N/A
35	R0306400	Combustion Air Filter Assembly	N/A
36	R0308000	LAARS R0308000 COMBUSTION AIR FILTER FOR HI-E2 GAS HEATERS	J6196
37	R0320303	Venturi Inlet (220)	N/A
37	R0320305	Venturi Inlet (350)	N/A
38	R0320400	Venturi 0-Ring	N/A
39	R0320500	Venturi Plenum	N/A
40	R0320600	Venturi / Tailpipe Gasket	N/A
41	R0307300	Mixing Chamber/ Tailpipe Assembly	N/A
42	R0320800	Mixing Chamber / Burner Gasket	N/A
43	R0305903	Burner Assembly (220)	N/A
43	R0305905	Burner Assembly (350)	N/A
44	R0305803	Burner / Combustion Chamber Gasket (220)	N/A
44	R0305805	Burner / Combustion Chamber Gasket (350)	N/A
45	R0305103	Combustion Chamber Assembly (220)	N/A
45	R0305105	Combustion Chamber Assembly (350)	N/A
46	R0305303	Refractory Tile Set (220)	N/A
46	R0305305	Refractory Tile Set (350)	N/A
47	R0305400	Sight Glass Assembly	N/A
48	R0213103	Combustion Chamber Strip Set (220)	N/A
48	R0213105	Combustion Chamber Strip Set (350)	N/A
49	R0305703	Combustion Chamber / Collector Gasket (220)	N/A
49	R0305705	Combustion Chamber/ Collector Gasket (350)	N/A
	R0322200	LAARS R0322200 VENTURI HARDWARE KIT FOR HI-E2 GAS HEATERS	J6234
	R0322100	Mixing Chamber Hardware Kit	N/A
	R0319403	Burner Hardware Kit (220)	N/A
	R0319405	Burner Hardware Kit (350)	N/A
50	R0303203	Collector (220)	N/A
50	R0303205	Collector (350)	N/A
51	R0308700	Blower / Collector Gasket	N/A
52	R0308200	LAARS R0308200 COMBUSTION BLOWER HI-E2 GAS HTRS	J6248
53	R0308600	Blower / Vent Duct Sleeve	N/A
54	R0308800	Blower/ Vent Duct Clamp	N/A
55	R0303100	Vent Duct Assembly	N/A
56	R0309100	Vent Duct / Heater Top Gasket or Heater Top / Indoor Collar Gasket	N/A
57	R0309500	Heater Top / Outdoor Exhaust Grille Gasket	N/A
58	R0308400	Outdoor Exhaust Grille	N/A
59	R0307900	LAARS R0307900 INDOOR VENT COLLAR COLLAR HI-E2 GAS HTRS	J6262
60	R0303300	LAARS R0303300 CONDENSATE TRAP ASSY HI-E2 GAS HEATERS	J6264
61	R0306200	JANDY # R0306200 LIMESTONE GRAVEL CONDENSATE NEUTRALIZER	J6146
62	R0213300	Condensate Trap Cover	N/A
63	R0061100	LAARS R0061100 TRANSFORMER ALL ELEC POOL HEATERS (E-974)	J2088
64	R0325600	In-Line Fuse Holder Assembly	N/A
65	R0202900	LAARS R0202900 IGNITION CONTROL FOR HI-E2 GAS HTRS	J6272
66	R0302700	Wire Harness, Ignition Control	N/A
67	R0016400	LAARS R0016400 IGNITER ASSY FOR HI-E2 GAS HTRS	J6276
68	R0205300	Igniter Gasket	N/A
69	R0301900	Terminal Block	N/A
70	R0322700	High Limit Switch Set	N/A
71	R0302400	High Limit Switch, 135 Degrees	N/A
72	R0302300	High Limit Switch, 150 Degrees	N/A
73	R0322600	High Limit Switch Wire Harness	N/A
74	R0322900	Pressure Switch & Siphon Loop Assembly	N/A
75	R0013200	LAARS R0013200 HOBB PRESSURE SWITCH 2 PSI (E171 / R132)	J2106
76	R0307800	Pressure Switch Siphon Loop	N/A
77	R0011700	LAARS TEMPRATURE CONTROL ASSY LAARS LITE 2 LD MODELS	J2211
78	R0011800	LAARS R0011800 TEMPERATURE SENSOR SENSOR	J2096
79	E0116400+	LAARS E0116400 TEMP CONTROL BULB "O-RING	J2184
80	10444900+	LAARS 10444900 THERMOSTAT SLEEVE SLEEVE	J2251
81	R0010700	LAARS R0010700 THERMOSTAT KNOB BLACK	J2092
82	R0099900	Pool / Spa Selector Knob	N/A
83	10583100	"Temp-Lok" Disc	N/A
84	10716701	Temperature Sensor Retainer Clip	N/A
85	R0302000	LAARS R0302000 DIFFERENTIAL PRESSURE SWITCH HI-E2	J6300
86	R0302200	Differential Pressure Switch Bracket	N/A
87	R0309000	Exhaust Vent Limit Switch	N/A
88	R0319700	JANDY #R0319700 BURNER HIGH LIMIT SWITCH	J6306
89	R0308100	Combustion Blower Wire Harness	N/A
	X0021100	Touch Up Spray Paint	N/A
	R0322800	High Temperature Silicone Sealant	N/A
