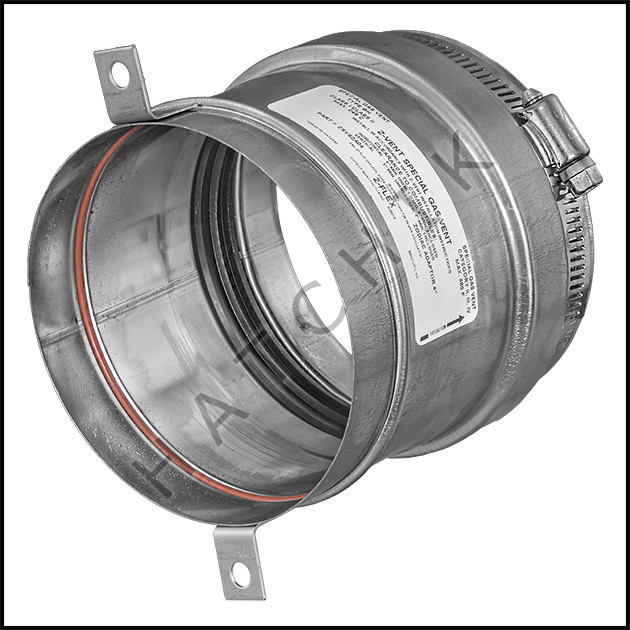

Z-FLEX VENT ADAPTER KIT FOR JXI HEATERS 2SVSZA4 (ALL JXI HEATERS) USE J6705

Product Description

Z-FLEX VENT ADAPTER KIT FOR JXI

Key	Part Number	Description	Item Number
1	L0038700	Oil Burner Assembly XL-2 (250)	N/A
1	L0038900	Oil Burner Assembly XL-2 (350)	N/A
1	L0060000	Oil Burner Assembly XL-3 (2000)	N/A
1	L0060100	Oil Burner Assembly XL-3 (3000)	N/A
2	P0065100	Oil Filter (Not Shown)	N/A
3	P0065500	Oil Filter Cartridge (Not Shown)	N/A
4	10430402	3/8" Oil Line, Pump to Filter	N/A
5	R0318800	J2071 LAARS R0318800 TEMP. CONTROL CONTROL ASSEMBLY (R582)	J2071
6	R0010700	J2092 LAARS R0010700 THERMOSTAT KNOB BLACK	J2092
7	H0048400	Thermostat Dial	N/A
8	10388300	Thermostat Cover	N/A
9	10368000	Thermostat Back	N/A
10	10362000	Thermostat Base Plate	N/A
11	R0045400	Pressure Switch, 1 - 10 PSI	N/A
12	10403400	Siphon Loop Cover	N/A
13	R0057800	J2127 LAARS R0057800 SYPHON LOOP KIT FOR ESG/ESC/LLG/LLD	J2127
14	R0023200	J6110 LAARS R0023200 HIGH-LIMIT SWI**USE J2021**ES 2 HEATR	J6110
15	R0022700	J2080 LAARS R0022700 HI-LIMIT 135o ALL HEATERS	J2080
16	R0012700	J2107 LAARS R0012700 LIMIT SWITCH 150o 150o (E-771)	J2107
17	R0057500	J1184 LAARS R0057500 HIGH LIMIT OIL HEATER SWITCH HARNESS 120 VOLT	J1184
18	R0057700	J1197 LAARS R0057700 OIL HEATER HARNESS LIMIT SWITCH HARNESS	J1197
19	10401100	High-Limit Switch Cover	N/A
20	E0078300	Switch Cover	N/A
21	E0078200	J2146 LAARS E0015600 ON/OFF SWITCH FOR OIL (E-782)	J2146
22	R0057600	Oil Burner Harness	N/A
23	P0059800	Connector Elbow 90 Degrees	N/A
24	10403601	Heat Exchanger Assy., Complete XL-2 (250)	N/A
24	10403602	Heat Exchanger Assy., Complete XL-2 (350)	N/A
24	10927101	Heat Exchanger Assy., Complete XL-3 (2000)	N/A
24	10927102	Heat Exchanger Assy., Complete XL-3 (3000)	N/A
25	10403501	Heat Exchanger XL-2 (250)	N/A
25	10403502	Heat Exchanger XL-2 (350)	N/A
25	10927001	Heat Exchanger XL-3 (2000)	N/A
25	10927002	Heat Exchanger XL-3 (3000)	N/A
26	10403700	J2179 LAARS S0065500 INLET/OUTLET HEADER FOR OIL HEATER	J2179
27	10403900	J2180 LAARS R0391100 END CAP - 1/2 TAP FOR OIL HEATER	J2180
28	10406100	J2178 LAARS R0391200 END CAP-NO TAP OIL HEATER (OLD # 10406100)	J2178
29	10403800	J2182 LAARS R0391300 END CAP - 1/4 TAP FOR OIL HEATER	J2182
30	10387804	Tee Baffle (5 needed) XL-2 (250)	N/A
30	10387805	Tee Baffle (5 needed) XL-2 (350)	N/A
30	10926901	Tee Baffle (5 needed) XL-3 (2000)	N/A
30	10926902	Tee Baffle (5 needed) XL-3 (3000)	N/A
31	10387702	J1121 LAARS R0391501 END BAFFLE 250/2000 HEAT EXCHANGER 250/2000 OIL	J1121
31	10387703	J1123 LAARS R0391502 END BAFFLE FOR HEAT EXCHANGER 350/3000 OIL	J1123
32	S0063400	J2140 LAARS R0391600 TUBE O-RING OIL HEATER END CAP (PACK OF 12)	J2140
34	S0098800	Grommet (2 needed)	N/A
35	P0027000	3/4" Brass Plug	N/A
36	P0059900	J1092 LAARS P0059900 DRAIN VALVE/	J1092
37	P0026800	V5102 BRASS PLUG - 1/4	V5102
38	R0020600	J2130 LAARS BY-PASS ASSY *OBSOLETE* HEATERS. P/N R0020600	J2130
39	S0074300	J6140 LAARS R0391800 BY-PASS VALVE ROD FOR ESG SERIES 2 HEATERS	J6140
40	S0074200	J2142 LAARS R0448600 BY PASS VALVE DISC DISC	J2142
41	S0008700	By-Pass Valve Rod Retainer	N/A
42	S0061100	J2158 LAARS S0061100 BY PASS SPRING VALVE BRASS COLOR FOR 250 OIL	J2158
42	S0061000	J2156 LAARS S0061000 SPRING FLOW CONTROL BLACK FOR 350 OIL	J2156
42	S0061300	J2160 LAARS S0061300 BY PASS SPRING 250 (ES,EPC,EPG)	J2160
42	S0061300	J2160 LAARS S0061300 BY PASS SPRING 250 (ES,EPC,EPG)	J2160
43	R0031900	J2124 LAARS R0031900 FLANGE KIT (SET OF 2) 1-1/2	J2124
44	10309200	1-1/2" Flange	N/A
45	S0053100	J2321 LAARS S0053100 O-RING GASKET (1-EACH)	J2321
46	S0028000	1-1/2" Flange Sleeve	N/A
47	F0031700	J2192 LAARS F0031700 FLANGE BOLT	J2192
48	S0065300	Gasket	N/A
49	N0006600	Burner Tube Gasket	N/A
50	10392000	Burner Support Bracket	N/A
51	10412203	Burner Compartment Door (250 & 2000)	N/A
51	10412204	Burner Compartment Door (350 & 3000)	N/A
52	T0020700	Fire Box Plug	N/A
53	10425800	Fire Box Cover Plate	N/A
54	10401000	Gap Spacer (Return)	N/A
55	10406301	Flue Collector Assembly	N/A
55	10406302	J1079 LAARS R0392702 FLUE COLLECTOR ASSY. (350/3000 OIL HEATER)	J1079
56	10405001	J6627 LAARS 10405001 FLUE TOP ASSY	J6627
56	10405002	Flue Top Assembly (350 & 3000)	N/A
57	10390000	J1157 LAARS R0392900 INNER STACK XL2 & XL-3	J1157
58	10404501	Flue Collector Shield (250 & 2000)	N/A
58	10405002	Flue Collector Shield (350 & 3000)	N/A
59	10319300	Vent Blade (10 needed)	N/A
60	10400900	Gap Spacer (In/Out)	N/A
61	10401200	Hold Down Clip	N/A
62	T0020500	Fire Box (250 & 2000)	N/A
62	T0020600	J1093 LAARS T-206 FIRE BOX DP-350	J1093
63	10400801	Fire Box Cover (2 needed) (250 & 2000)	N/A
63	10400802	Fire Box Cover (2 needed) (350 & 3000)	N/A
	F0004300	Air Tube Screw	N/A
	F0031300	Pilot Bracket Screw	N/A
	N0000200	End Air Shutter	N/A
	N0000300	Bulk Air Band	N/A
	N0000800	Air Tube Gasket	N/A
	N0001000	J2170 LAARS R038810 1/7 HP MOTOR FOR OIL	J2170
	N0001400	Blower Wheel 4-1/4" x 3-7/16"	N/A
	N0001500	Flexible Coupling	N/A
	R0140100	Fuel Unit, Two Stage	N/A
	N0002000	Pump Outlet Fitting	N/A
	N0002200	Connector Tube Assembly	N/A
	R0140200	Ignition Transformer	N/A
	N0002600	Contact Spring Terminals	N/A
	N0002800	Nozzle, Monarch 1.75	N/A
	N0002900	Air Tube Combination	N/A
	N0003100	Nozzle Line Electrode Assembly	N/A
	N0003500	Electrode Clamp	N/A
	N0004000	Electrode Rod & Tip	N/A
	N0004500	Burner Head & Screws	N/A
	N0004700	Burner Head XL-2 (250, 350) & XL-3 (2000)	N/A
	N0007700	Burner Head XL-3 (3000)	N/A
	N0006500	Delavan Nozzle, 1.75 XL-2 (250)	N/A
	N0005800	Delavan Nozzle, 2.50 XL-2 (350)	N/A
	N0007600	Delavan Nozzle, 1.65 XL-3 (2000)	N/A
	N0007500	Delavan Nozzle, 2.25 XL-3 (3000)	N/A
	R0140300	Primary Control	N/A
	N0006100	J2148 LAARS R0524300 VENT FUSIBLE LINK 240 DEGREE C	J2148
	N0007000	By-Pass Plug	N/A
	N0007100	By-Pass Plug	N/A
	P0026100	1/8" Burner Head Plug	N/A
	P0026800	V5102 BRASS PLUG - 1/4	V5102
64	R0040400	J2128 LAARS R0040400 PRESSURE RELIEF VALVE 3/4" 75 PSI (J6540)	J2128
	D0014900	J1097 LAARS D-149 TOP FOR OIL HEATER 9" CHIMNEY CAP	J1097
