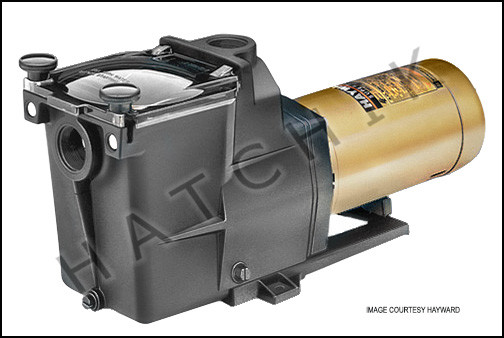

HAYWARD-SUPER PUMP 1 HP 2-SP SP2607X102S

Product Description

HAYWARD SUPER PUMP 1 HP 2-SP SP2607X102S

Key	Part Number	Description	Item Number
1	SPX1600P	Hand Knob	N/A
2	SPX1600N	Swivel Nut	N/A
3	SPX1600D	K4298 HAYWARD SPX1600D LEXAN STRAIN. COVER SUPER PUMP	K4298
4	SPX1600S	K4300 HAYWARD SPX1600S COVER GASKET FOR LEXAN COVER SUPER PUMP	K4300
5	SP1600M	K7167 BASKET - #B-167 SP-1600-M PUMP SP-1600-M PUMP	K7167
6	SPX1600V	K4295 HAYWARD SPX1600V PIPE PLUG PRIOR TO 1991	K4295
6	SPX1700FG	K4284 HAYWARD SPX1700FG PIPE PLUG W/ GASKET	K4284
7	SPX1600AA	K4290 HAYWARD SPX1600AA PUMP HOUSING /STRAINER SUPER PUMP 1-1/2"	K4290
7	SPX1620AA	K4292 HAYWARD SPX1620AA PUMP HOUSING /STRAINER SUPER PUMP 2""	K4292
8	SPX1600R	K4296 HAYWARD SPX1600R DIFFUSER GSKT SUPER PUMP (1-EACH)	K4296
9	SPX2600B	K4362 HAYWARD SPX2600B DIFFUSER 1/2- 2 HP (2600 SUPER PUMP)	K4362
9	SPX1616B	K4340 HAYWARD SPX1616B DIFFUSER 2-1/2 HP SUPER PUMP	K4340
10	SPX2600C	K4361 HAYWARD SPX2600C IMPELLER 1/2 HP MAX RATED (2600 SUPER PUMP	K4361
10	SPX2605C	K4364 HAYWARD SPX2605C IMPELLER 3/4 HP MAX RATED (2600 SUPER PUMP	K4364
10	SPX2607C	K4365 HAYWARD SPX2607C IMPELLER 1 HP MAX RATED (2600 SUPER PUMP)	K4365
10	SPX2610C	K4366 HAYWARD SPX2610C IMPELLER 1-1/2HP MAX RATED(2600 SUPER)	K4366
10	SPX2615C	K4367 HAYWARD SPX2615C IMPELLER 2 HP MAX RATED (2600 SUPER PUMP)	K4367
10	SPX1621C	K4356 HAYWARD SPX1621C 2-1/2 HP IMPELLER - HIGH HEAD	K4356
11	SPX1600Z2	K4392 HAYWARD SPX1600Z2 SEAL ASSEM. IF YOU NEED SEAL FOR	K4392
11	AS-1521	K6062 PUMP SEAL AS-1521 (USE K6032) SUPER PUMP,SUBS K6032	K6062
12	SPX1600T	K4294 HAYWARD SPX1600T HSG GASKET SUPER PUMP	K4294
13	SPX2600E	K4363 HAYWARDSPX1600SKIT1 SEAL PLATE 1/2 - 2 HP (2600 SUPER PUMP)	K4363
14	SPX1611E	K4360 HAYWARD SPX1600SKIT2 SEAL PLAT HIGH HEAD 1600 & 2600 SERIES	K4360
15	SPX1600Z4	K4396 HAYWARD SPX1600Z4 HOUSING CAP SCREW SCREW	K4396
16	SPX0125Z44	K4398 HAYWARD SPX0125Z44 BOLT (BAG OF 4) (SET OF 4)	K4398
17,18	SPX1600GJ	Mounting Feet - Long (Set Left & Right) w/Adaptor	N/A
	SPX1600Q	K4312 HAYWARD SPX2600Q MOTOR SUPPORT SUPER PUMP	K4312
19	SPX1600Z52	K4390 HAYWARD SPX1600Z52 MOUNTING FOOT CAP SCREW (SET OF 2)	K4390
20	SPX0125F	K4324 HAYWARD SPX0125F MOTOR SLINGER SUPER/SUPER II PUMPS	K4324
21	SPX1600Z1M	Motor, 1/2 HP Threaded Shaft (115V)	N/A
21	SPZ1605Z1M	Motor, 3/4 HP Threaded Shaft (115/230V)	N/A
21	SPX1607Z1M	Motor, 1 HP Threaded Shaft (115/230V)	N/A
21	SPX1610Z1M	Motor, 1-1 /2 HP Threaded Shaft (115/230V)	N/A
21	SPX1615Z1M	Motor, 2 HP Threaded Shaft (115/230V)	N/A
21	SPX1620Z1M	Motor, 2-1/2 HP Threaded Shaft (230V)	N/A
