HAYWARD EC65A BASIC PERFLEX DE FILTER W/CHECK VALVE

Product Description

HAYWARD EC65A BASIC PERFLEX DE FILTER W/CHECK VALVE

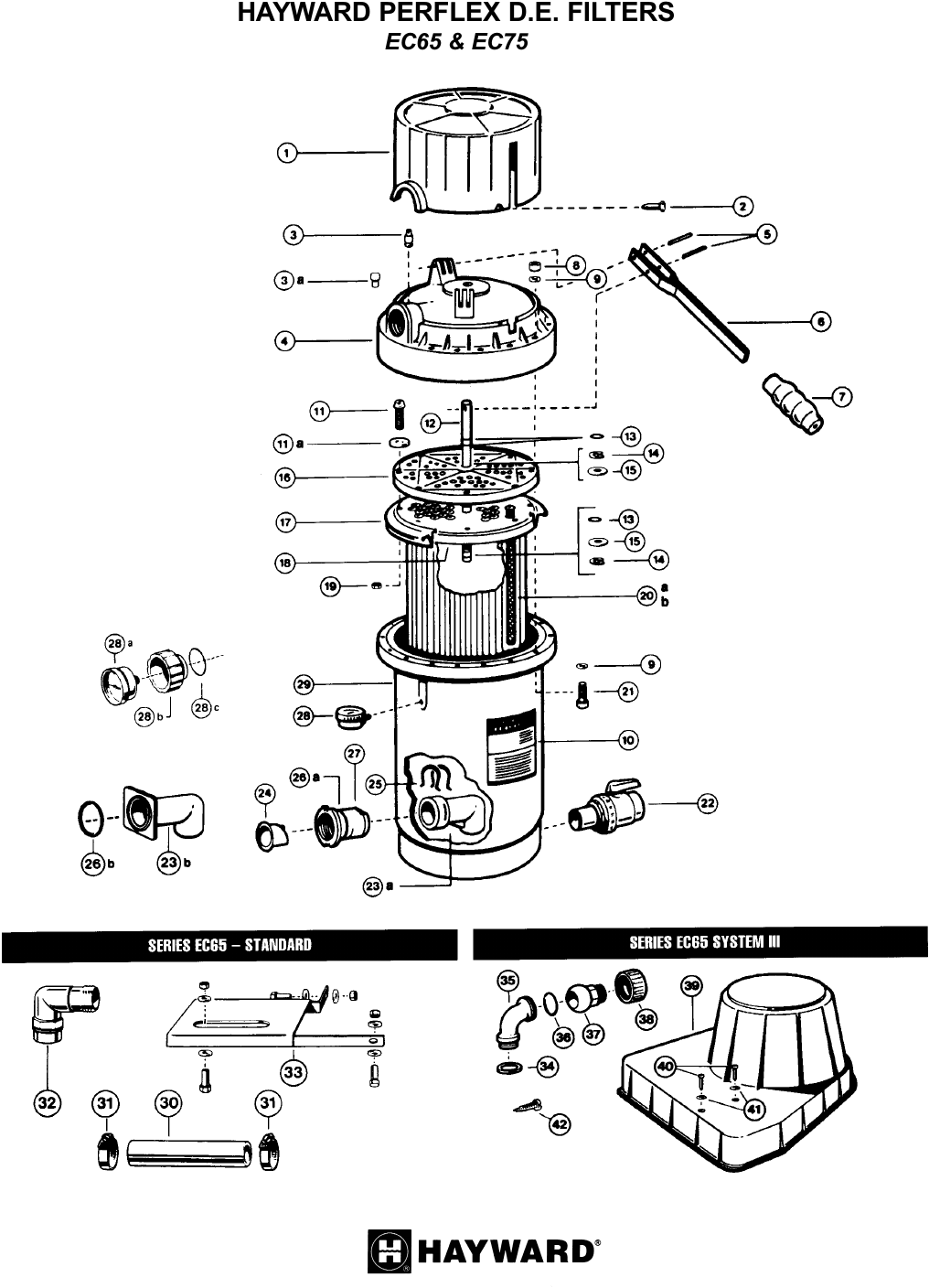

Key	Part Number	Description	Item Number
1	ECX11206	H6450 HAYWARD ECX11206 BUMP MECHANSM COVER	H6450
2	ECX1019	Cover Screw (2 needed)	N/A
3	ECX1715A	Vent Valve - 1978 and Prior	N/A
3A	ECX1321A	H6152 HAYWARD ECX1322A AIR RELIEF VALVE VALVE (REPLACES ECX1321A)	H6152
4	ECX11194AT	H6458 HAYWARD ECX11194AT FILTER HEA W/VAC RELIEF (EC-65)	H6458
5	ECX1013	H6372 HAYWARD ECX1013 PIVOT PIN ** Order Purchase Qty for 1% **	H6372
6	ECX1040	H6205 HAYWARD ECX1040 NORYL BUMP HANDLE HANDLE	H6205
7	ECX2706A	Handle Grip for Metal Handle	N/A
	ECX1007	Bump Handle - Metal	N/A
	ECX1037B	H6291 HAYWARD ECX1037B GRIP FOR BUMP HANDLE - NORYL	H6291
8	ECX176855	H6292 HAYWARD ECX1642A TANK BOLT SET 1/4""-20	H6292
9	ECX1252	H6468 HAYWARD ECX1252 WASHER 1/4" 11/16"" OD*REPLACED W/H6172	H6468
10	ECX1230	Decal, Operation	N/A
11	SPX1500N1	H6384 HAYWARD SPX1500N1 SCREW FOR TUBE SHEET	H6384
11A	ECX1641125	H6272 HAYWARD ECX1641125 WASHER STANDARD #10 FLT 18/8	H6272
12	ECX1110	H6388 HAYWARD ECX1110 BUMP SHAFT ** Order Purchase Qty for 1% **	H6388
13	ECX9611246	H6390 HAYWARD ECX9611246 O-RING (SOLD BY EACH)	H6390
14	ECX1014	H6166 HAYWARD ECX1014 RETAINER CLIP (SOLD BY THE EACH)	H6166
15	ECX1011	H6394 HAYWARD ECX1011 THRUST WASHER ** Order Purchase Qty for 1% **	H6394
16	ECX1104	H6484 HAYWARD ECX1104 TOP TUBE SHEET ** Order Purchase Qty for 1% **	H6484
17	ECX1105	H6486 HAYWARD ECX1105 DIAPHRAGM GASKET GASKET	H6486
18	ECX1103	H6402 HAYWARD ECX1103 BOTTOM TUBE SHEET SHEET	H6402
19	SPX1500Y1	H6404 HAYWARD SPX1500Y1 TUBE SHEET NUT NUT	H6404
20A	ECX1031	H6396 HAYWARD ECX1031PAK5 FLEX TUBES * SOLD BY 1-EACH ****	H6396
20B	ECX1032	H6180 HAYWARD ECX1032 FLEX TBE ASSY 16-1/4"" LONG (EC-75/50) (SOLD BY EACH)	H6180
21	ECX1642215	H6310 HAYWARD ECX1642215 HEX HEAD BOLT 1/4""-20 X 1-3/4""	H6310
22	SP-723	Ball Type Drain Valve	N/A
23A	ECX4200C	Elbow (1989 - Prior)	N/A
23B	ECX4220A	H6501 HAYWARD ECX4220A ELBOW ASSY WITH CHECK VALVE	H6501
24	ECX4077B1	H6326 HAYWARD ECX4077B1 CHECK VALVE ** Order Purchase Qty for 1% **	H6326
25	ECX4212A	H6320 HAYWARD ECX4212A RETAINER CLIP CLIP	H6320
26A	SPX1425Z6	H6722 HAYWARD SPX1425Z6 O-RING FOR INLET FITTING (1990 TO PRESENT)	H6722
26B	SPX1500W	K4279 HAYWARD SPX1500W STRAINER O-RING O-RING	K4279
27	ECX4201CA	H6508 HAYWARD ECX4201CA TANK FITTING ASSEMBLY W/CHECK VALVE	H6508
28	ECX27081	H6316 HAYWARD ECX27081 PRESSURE GAUGE (BOXED) "NLA 2005	H6316
28A	ECX27091	H6194 HAYWARD ECX27091 PRESSURE GAUGE (BOXED)	H6194
28B	ECX12866	H6196 HAYWARD ECX12866 GAUGE/INSPECT PORT ADAPTER	H6196
28C	ECX1287	H6198 HAYWARD ECX1287 GAUGE ADAPTER O-RING	H6198
29	ECX11184AT	Filter Body with New Elbow Assembly	N/A
	ECX1251	H6514 HAYWARD ECX1251 EC65 TUBE NEST ASSEMBLY	H6514
	ECX125175	H6516 HAYWARD ECX125175 EC75 TUBE NEST ASSEMBLY	H6516
30	ECX27071	H6426 HAYWARD ECX27071 I.D. CLEAR HOSE 1 9/16"	H6426
31	ECX18028	H6428 HAYWARD ECX18028 HOSE CLAMP USED ON: PRO SERIES AND PERFLEX	H6428
32	SPX1105Z4	H6430 HAYWARD SPX1105Z4 BARBED HOSE ELBOW - 1-1/2""	H6430
33	ECX30442D	Pump Mounting Base	N/A
34	SPX1485C	H6726 HAYWARD SPX1485C ELBOW O-RING GASKET	H6726
35	SPX1485B	H6534 HAYWARD SPX1485B ELBOW ONLY FOR EC40 & 65	H6534
36	SPX1425Z6	H6722 HAYWARD SPX1425Z6 O-RING FOR INLET FITTING (1990 TO PRESENT)	H6722
37	SPX1485A	H6538 HAYWARD SPX1485A BALL END CONNECTOR CONNECTOR	H6538
38	SPX1480C	H6720 HAYWARD SPX1480C UNION NUT ** Order Purchase Qty for 1% **	H6720
39	ECX1263	Base	N/A
40	ECX1275	Pump Mounting Screw, 1-1/4" (2 needed)	N/A
41	ECX1109	H6236 HAYWARD ECX1109 WASHER ** Order Purchase Qty for 1% **	H6236
42	SPX1600Z54	K4390 HAYWARD SPX1600Z52 MOUNTING FOOT CAP SCREW (SET OF 2)	K4390
