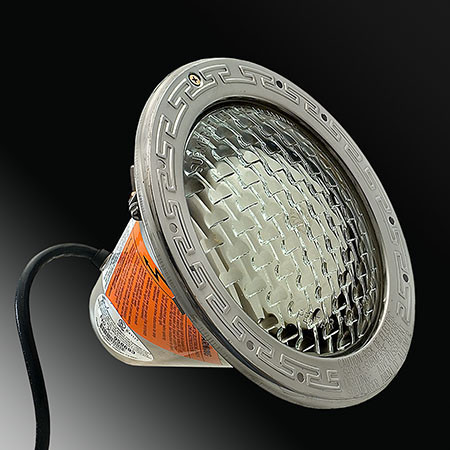

AMERLITE 500W POOL LIGHT 120V 200FT

Product Description

AMERLITE 500W POOL LIGHT 120V 200'

Key	Part Number	Description	Item Number
1	79100500	Face Ring, Chrome-Brass UL	N/A
2	79105100	O5046 AMERICAN #791051 LIGHT BRASS CLIP FOR SEALING	O5046
3	98204400	O5005 AMERICAN #982044 SCREW FOR CLIP LIGHT CLIP 10-24 X 1/2	O5005
4	79212100	O5000 AMERICAN 79212100 LARGE FACE RING PLASTIC-WHITE	O5000
4	79212165	O5001 PENTAIR FACE RING LARGE GREY FACE RING - GRAY	O5001
4	79212111	O5002 AMERICAN 79211600 MOUNTING RING	O5002
5	79104800	O5006 AMERICAN #791048 LIGHT SCREW W/CAPTIVE GUM WASHER	O5006
6	79110600	O5060 AMERICAN #791106 S.S. FACE RING RING ASSY FOR AMERILITE	O5060
7	79110400	Wire, Unitension	N/A
8	79112000	O5013 AMERICAN #791120 RING BOLT	O5013
9	51008500	K3898 AMERICAN #510085 FLAT WASHER ULTRA-FLO PUMP	K3898
10	98216100	O5011 AMERICAN #982161 BRASS NUT FOR S.S. FACE RING	O5011
11	79111000	O5061 AMERICAN #791110 WIRE CLAMP ASSY FOR LIGHT	O5061
12	79100100	O4050 LIGHT LENS 8 3/8" CLEAR 8-3/8	O4050
12	79100200	O4055 LIGHT LENS 8 3/8" BLUE	O4055
13	79101600Z	O4082 AMERICAN LIGHT LENS GSKT 8-3/8"OEM AMERICAN #79101600Z OEM	O4082
13		O4075 LENS GASKET AMERICAN 8 3/8"	O4075
14	79101900	O4025 BULB 300W 12V MEDIUM BASE FLOOD	O4025
14	79102100	O4010 BULB 500W 120V MEDIUM BASE FLOOD	O4010
15	79131000	O5094 PENTAIR 619875Z REPLACEMENT ENGINE WHITE LIGHT	O5094
15	79131100	O5095 PENTAIR 619917Z REPLACEMENT ENGINE 500W INTELLIBRITE WHITE LIGHT	O5095
15	79131400	O5096 PENTAIR 640046 LENS KIT FOR SPA IN INTELLIBRITE LIGHT (LENS & GASKET)	O5096
15	79131200	O5097 AMERICAN #79131200 100W 12V 2 PIN T3 GY 6.35 BLB-O1342	O5097
	78900800	O4093 LIGHT LENS SNAP ON 8 3/8" BLUE 8-3/8" COLOR: BLUE	O4093
	78900900	O4094 LIGHT LENS SNAP ON 8 3/8" RED 8-3/8" COLOR: RED	O4094

Key	Part Number	Description	Item Number
1	79200100	O5050 AMERICAN #792001 LINER SEALING RING BRASS/CHROME AMER.PATTERN	O5050
1	79200200	O1305 AMERICAN #792002 LINER RING RING, CHROME	O1305
2	79200300	O5018 AMERICAN FACE RING GASKET SET OF 2 GASKETS (2) AMERICAN PATTERN	O5018
3	79200400	O1306 AMERICAN #792007 LINER RING GASKET LINER SEALING RING (SET OF 3)	O1306
4	98202600	L2019 AMERICAN 98202600 SCREW PFH 1/4-20 X 1" 18-8	L2019
4	98202700	L2020 AMERICAN #98202700 SEALING SCREW 1/4-20 X 1-1/4	L2020
5	98204200	Retainer Screw 12-24 x 3/4"	N/A
6	63-4595	Backup Ring (Std Hole Pattern)	N/A
7	98204400	O5005 AMERICAN #982044 SCREW FOR CLIP LIGHT CLIP 10-24 X 1/2	O5005
	79205100	O5022 AMERICAN 79205100 SCREW KIT AMERICAN PATTERN VINYL NICHE	O5022
	79205200	O5023 AMERICAN #79205200 NICHE SCREW KIT (XL) FOR AMERICAN PATTERN	O5023
	79205400	O5032 AMERICAN 79205400 NICHE SCREW KIT W/O DOUBLE WALL GASKET	O5032

Key	Part Number	Description	Item Number
1	79213100	Face Ring, Large Plastic (White)	N/A
1	79213165	Face Ring, Large Plastic (Gray)	N/A
1	79213111	Face Ring, Large Plastic (Black)	N/A
2	79104800	O5006 AMERICAN #791048 LIGHT SCREW W/CAPTIVE GUM WASHER	O5006
3	79110600	O5060 AMERICAN #791106 S.S. FACE RING RING ASSY FOR AMERILITE	O5060
4	79110400	Wire, Uni-Tension	N/A
5	79112000	Bolt	N/A
6	51008500	K3898 AMERICAN #510085 FLAT WASHER ULTRA-FLO PUMP	K3898
7	98216100	Nut, Brass	N/A
8	79111000	O5061 AMERICAN #791110 WIRE CLAMP ASSY FOR LIGHT	O5061
9	79100100	Lens, SAm, 8-3/8" Diam. Tempered	N/A
10	79101600Z	O4082 AMERICAN LIGHT LENS GSKT 8-3/8"OEM AMERICAN #79101600Z OEM	O4082
11	79112400	Bulb, 75 Watt, EYC, MR-16	N/A
